Description
A slimmer back bar cooler for when space is tight. At only 500mm wide it is 100mm narrower than a standard single door back bar unit. The BA6H comes with LED lighting as standard to improve energy efficiency along with a lock for security where required. Ideal for pubs, restaurants and cafés.
Technical specifications
| Temperature Range | +2 to +10 |
| Climate Class | 4 |
| Gross / Net Weight | 45 / 40 |
| Gross / Net Volume | 105 / 92 |
| Feet / Legs | 4 adjustable feet |
| Exterior Finish | Black |
| Interior Finish | Stucco aluminium |
| Interior Light | LED |
| Lock | Yes |

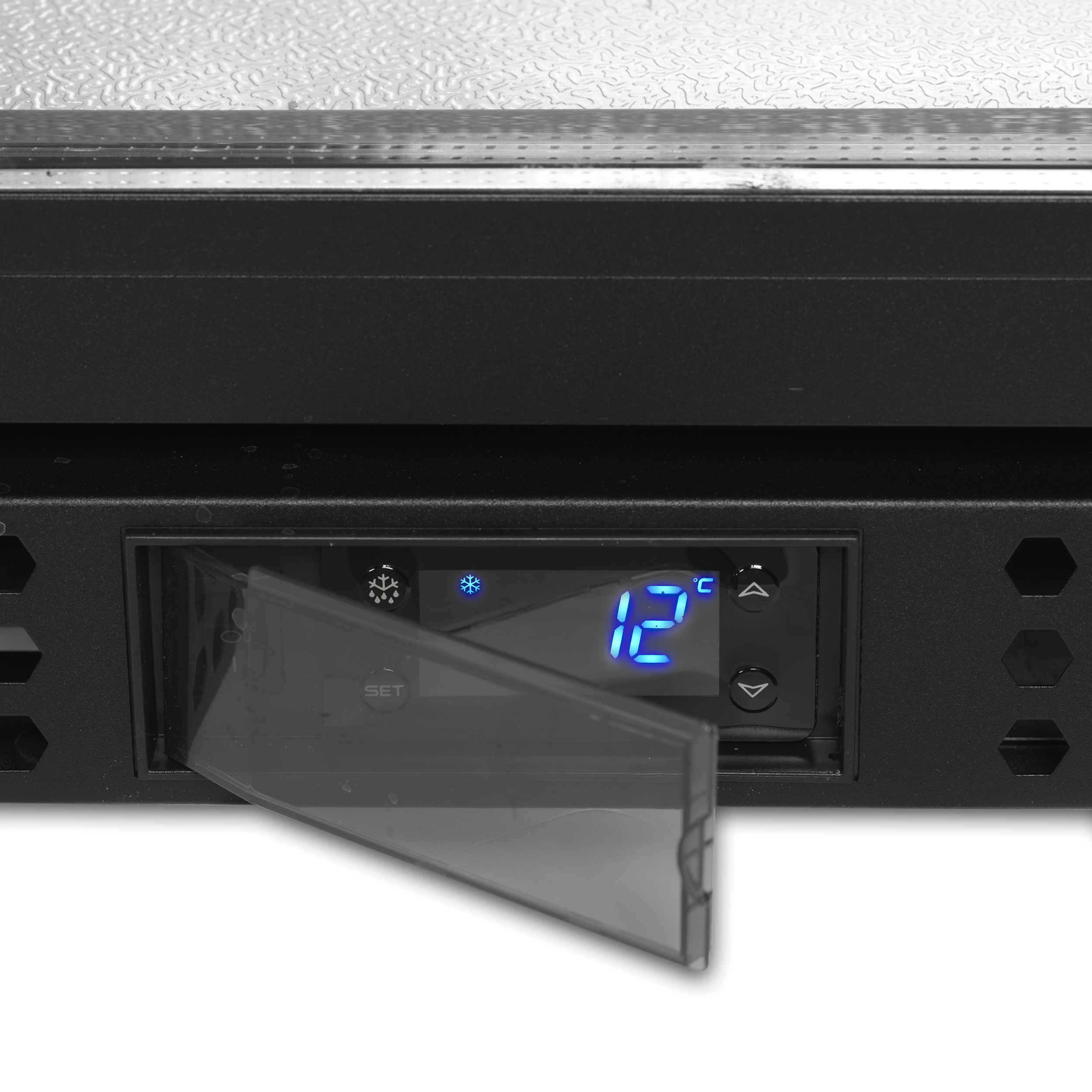

| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic |
| Refrigerant | R600a |
| Refrigerant Charge | 45 |
| Thermometer | Yes |
| Energy Class | A |
| EPREL No | 1431504 |
| Max Ambient | 30°C at 55% RH |
| Energy Consumption | 0.85 |
| Annual Energy Consumption | 310 |
| Power | 13 Amp |
| Input Power | 95 |
| Voltage / Frequency | 220-240/50 |
| Noise Level | 44 |
| Internal Dimension (WxDxH) | 410 x 418 x 720 |
| External Dimension (WxDxH) | 500 x 520 x 870 |
| Packed Dimension (WxDxH) | 585 x 575 x 940 |
| 40ft Container Load | 160 |
| GTIN / EAN | 5708181733490 |
| Product Group – Delivery services | Group 1 |
| Cans 330 ml | 113 |
| Cans 500 ml | 96 |
| Bottles 330 ml | 70 |
| Bottles 500 ml PET | 70 |
| Total Display Area | 0.29 |
| Door Number & Type | 1 hinged glass door |
| Door Reversible | Yes |

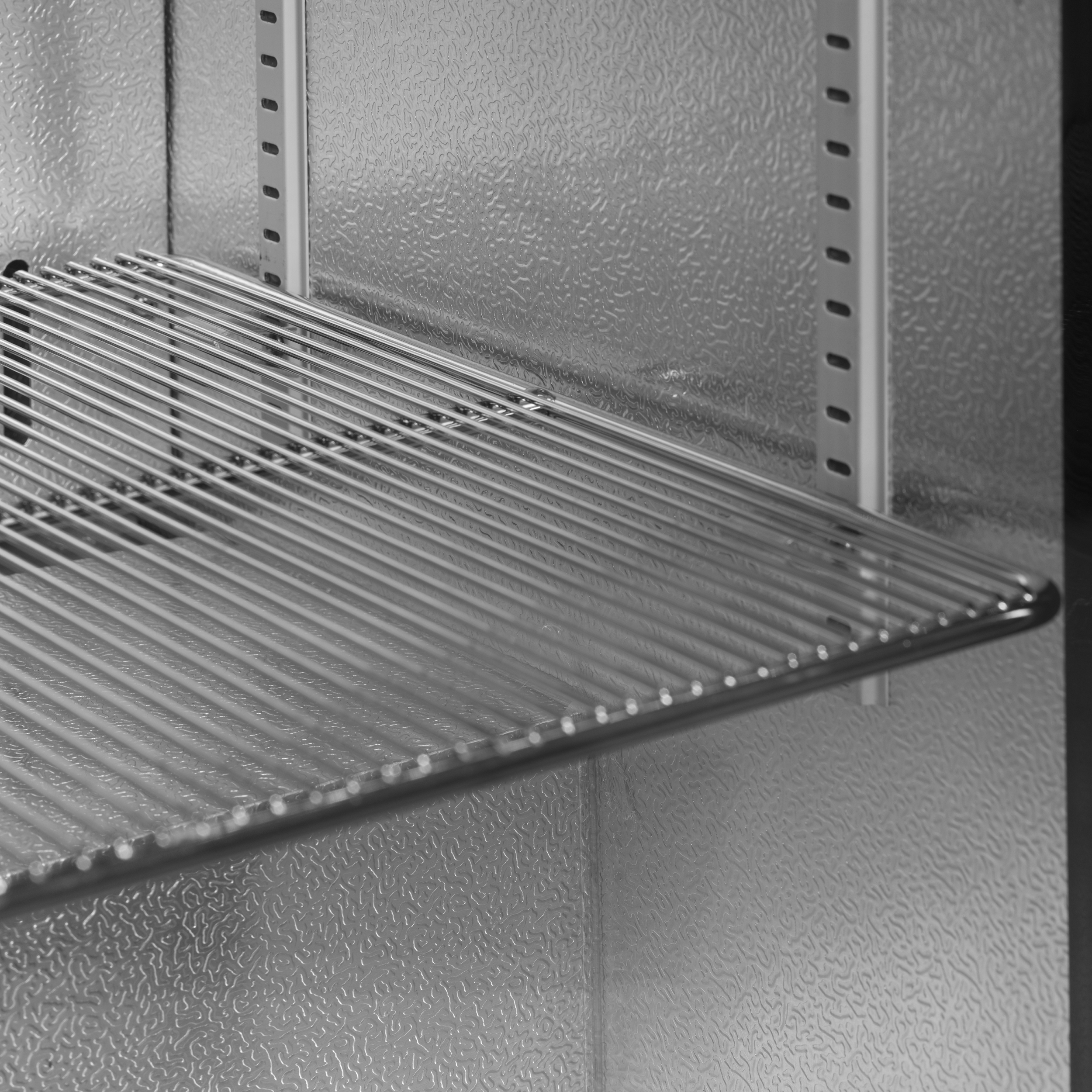

| Shelves Number & Type | 2 wire shelves chrome |
| Shelf Color | Chrome |
| Shelf Dimensions | 395×350 mm |
