Description

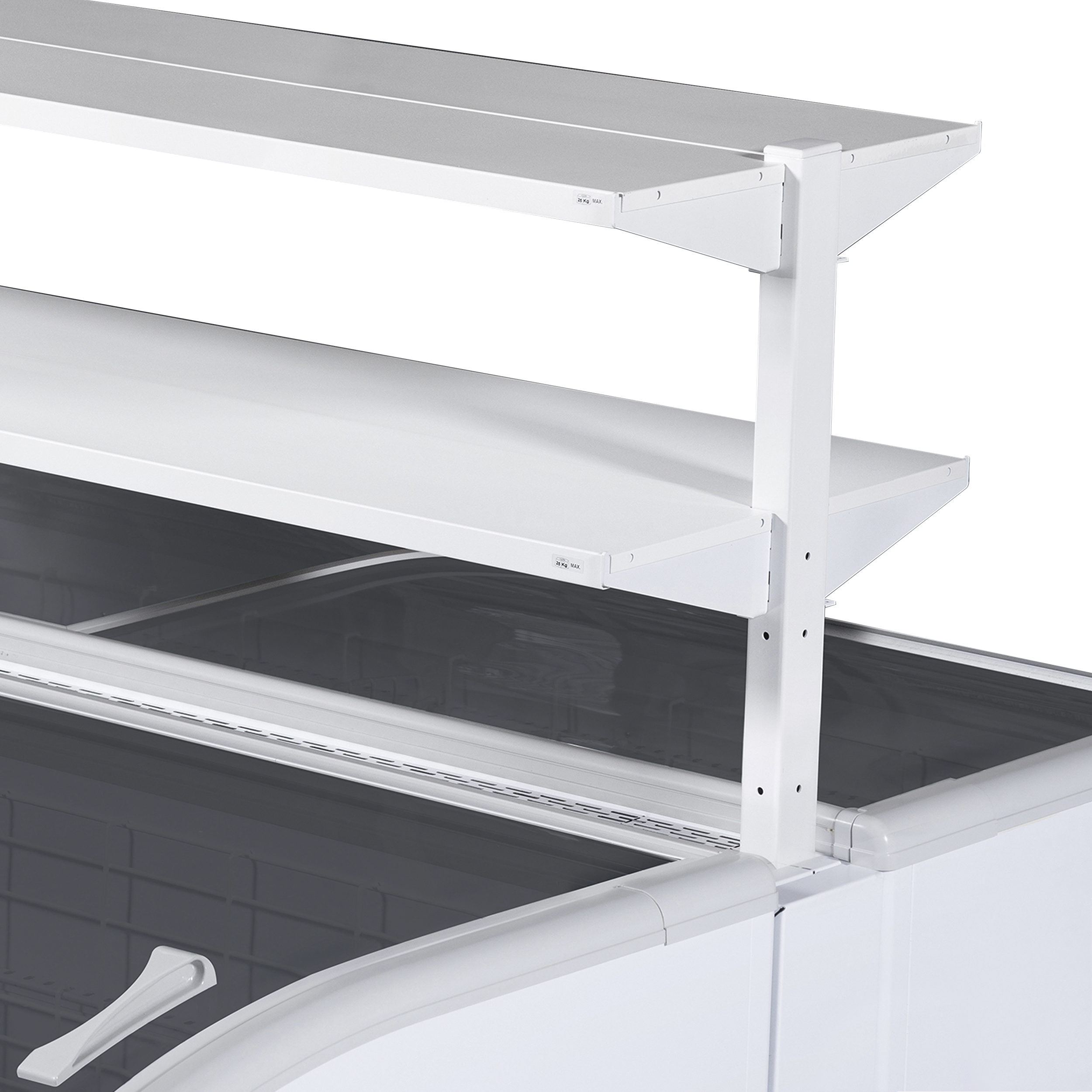

The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market.
Technical specifications
| Temperature Range | -24 to -18 |
| Climate Class | 3 |
| Gross / Net Weight | 198 / 147 |
| Gross / Net Volume | 1030 / 750 |
| Feet / Legs | 4 adjustable legs |
| Exterior Finish | Anthracite RAL7016 |
| Interior Finish | White |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Static |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 2 x 80 |
| Thermometer | Yes |
| Energy Class | C |
| Max Ambient | 25°C at 60% RH |
| Energy Consumption | 6.9 |
| Annual Energy Consumption | 2847 |
| Power | 13 Amp |
| Input Power | 681 |
| Voltage / Frequency | 220-240/50 |
| Noise Level | 48 |
| Internal Dimension (WxDxH) | 2364 x 773 x 490 |
| External Dimension (WxDxH) | 2500 x 920 x 790 |
| Packed Dimension (WxDxH) | 2610 x 1020 x 850 |
| 40ft Container Load | 24 |
| GTIN / EAN | 5708181995317 |
| Product Group – Delivery services | Group 4 |
| Lid Number & Type | 2 curved sliding temp. glass lids |
| Total Display Area | 1.66 |

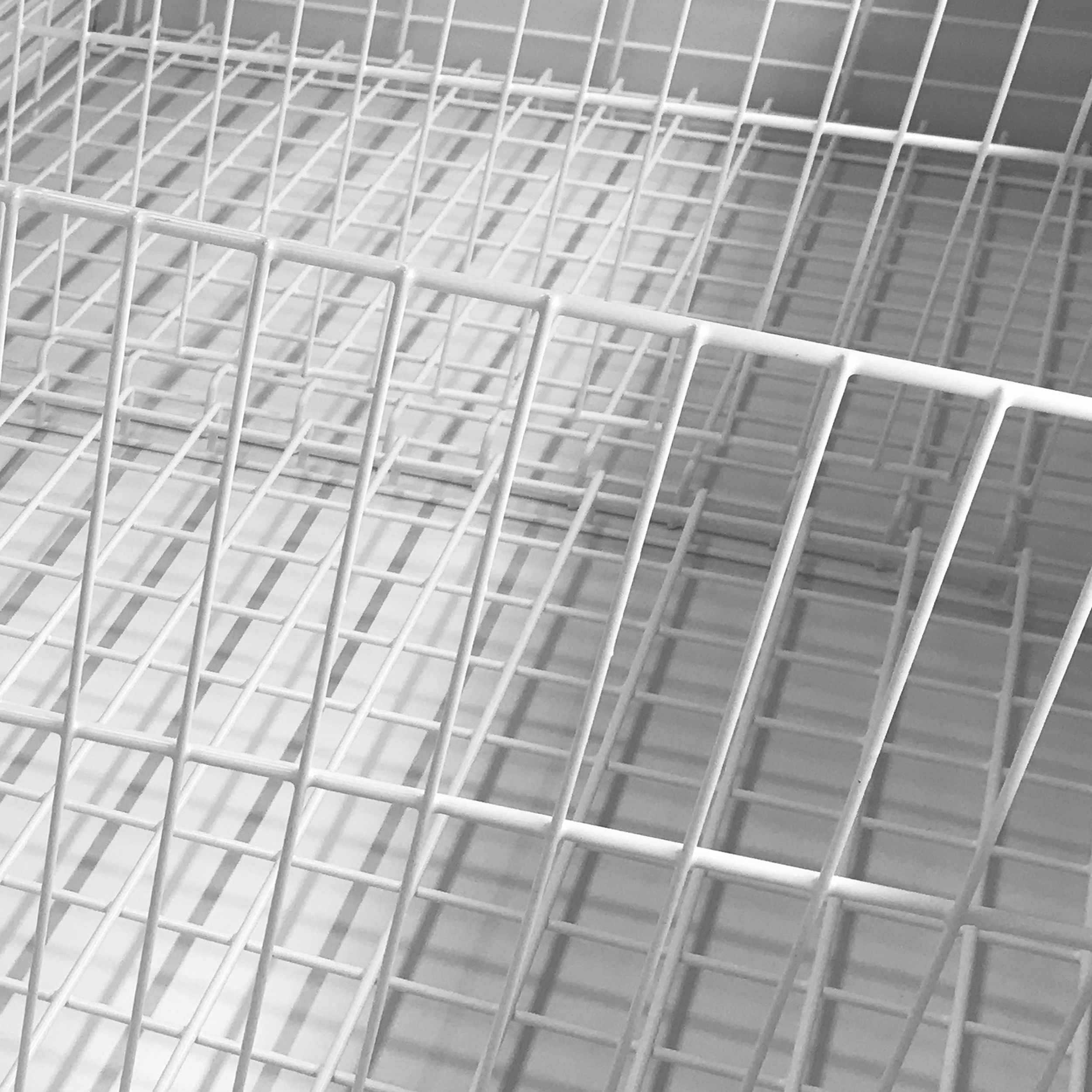

| Basket Number & Type | 0 |
| Number of dividers | 2 |
