Description

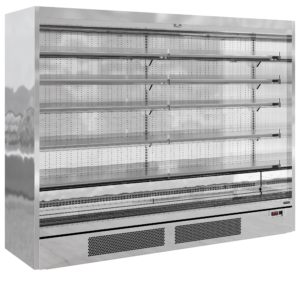

The TEFCOLD Galaxy+ range, finished in mirror stainless steel: our latest innovation in plug-in multidecks. We’ve combined an expanded display area and optimised cabinet efficiency. The ultra-low front and slim top canopy provide an extra 100mm of internal height, accommodating up to 5 shelves (plus base) as standard, all while maintaining an overall height of just 2040mm. With a depth of only 740mm, the unit fits through standard doors for easy installation, yet has 400mm deep shelves for maximum stock capacity. Each unit comes with heavy-duty adjustable shelves that can be tilted if needed, as well as EPOS ticket strips and shelf risers as standard. Optional extras include glass end-walls and multiplexing kits.
Technical specifications
| Temperature Range | -1 to +5 |
| Climate Class | 3 |
| Gross / Net Weight | 298 / 280 |
| Gross / Net Volume | 1443 / 629 |
| Feet / Legs | 4 adjustable feet |
| Exterior Finish | Mirror Stainless Steel |
| Interior Finish | Mirror Stainless Steel |
| Interior Light | LED |
| Lock | No |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 140 |
| Thermometer | Yes |
| Energy Class | D |
| EPREL No | 2056806 |
| Max Ambient | 25°C at 60% RH |
| Energy Consumption | 16.65 |
| Annual Energy Consumption | 6077 |
| Power | 13 Amp |
| Input Power | 583 |
| Voltage / Frequency | 220-240/50 |
| Noise Level | 55 |
| Internal Dimension (WxDxH) | 1250 x 544 x 1562 |
| External Dimension (WxDxH) | 1330 x 740 x 2040 |
| Packed Dimension (WxDxH) | 1350 x 770 x 2320 |
| 40ft Container Load | 23 |
| GTIN / EAN | 5708181725648 |
| Product Group – Delivery services | Group 3 |
| Shelves Number & Type | 5 adjustable |
| Shelf Color | Stainless steel |
| Shelf Dimensions | 1250x400mm |
| Max load on Shelves | 160 |
| Total Display Area | 1.91 |
Downloads
Energy Arrow
Product Sheet User Manual Energy Classification
